Characteristic:
1. Fiberglass filter media
2. Low resistance
3. Green and white color make easy to identify front and back side, the windward side is green, the leeward side is white
4. High dust holding capacity
5. Flexibility
6. Economic
Product Overview:
1. Effectively removes paint overspray solids of all types – lacquer, air dry, or baked enamel.
2. Protect exhaust ducts, fans, and motors from paint buildup.
3. Clean exhaust air is discharged to the atmosphere.
4. Can be customized in pad / pad with frame / rolls.
Application:
1. Exhaust gas filtering and paint mist collection in spray booth exhaust system;
2. Exhaust gas filtering and paint mist collection in painting equipment, painting system, and painting workshop.
3. Industrial oil mist emissions and paint mist collection.
4. Filter media for paint stop air filter and primary air filter.
5. Pre-filtering for paint mist and oil mist type exhaust gas purification device.
1. Using fluffy fiber glass material with Progressive structure, air inlet side is green, which is fluffy. The density of fiber increase gradually from inlet side (green) to outlet side (white). With this special structure, it can prevent surface material from being blocked too soon, meanwhile providing best effect of filtering and holding the paint.
2. Good elasticity fiber glass, no transformation even under the condition of pressure, therefore all the space can be made good use for collecting paint mist.
3. With better resistance to corrosion, all kind of solvent, acid-base and high temperature.
Technical Parameters: | Media Type : | Fiberglass |
| EN779 : | G3/EU3 |
Filter Object :
| Paint mist, Oil mist, Dust particles
|
| Inflaming Retarding Class : | F1(DIN 53438) |
| Humidity : | ≤ 100%RH |
Max Operating Temperature :
| 170°C |
| Package : | The compression packing may save the fare and the storage in the transportation. After decompression, it will regain its original condition; |
Specification & Details:
| Model | FRS-PA-50
| FRS-PA-75
| FRS-PA-100
|
Average arrestance
| ≥90%
| ≥96%
| 97%-99%
|
Initial pressure drop
| ≤30Pa
| ≤40Pa
| ≤50Pa
|
Final pressure drop
| 250 Pa
| 260 Pa
| 280 Pa
|
Initial air flow
| 7200 m³/h
| 6300 m³/h
| 4500 m³/h
|
Rated Air velocity
| 2m/s
| 1.75m/s
| 1.5m/s
|
Dust holding at final
| 3200~3600 g/㎡
| 3200~3600 g/㎡
| 3600~4900 g/㎡
|
Normal thickness
| 50~60mm
| 70~80mm
| 90~100mm
|
Normal size (W x L )
| 0.8*20m
1.0*20m
2.0*20m | 0.8*20m
1.0*20m
2.0*20m | 0.8*20m
1.0*20m
2.0*20m |
Weight
| 250 g/㎡
| 300 g/㎡
| 350 g/㎡
|

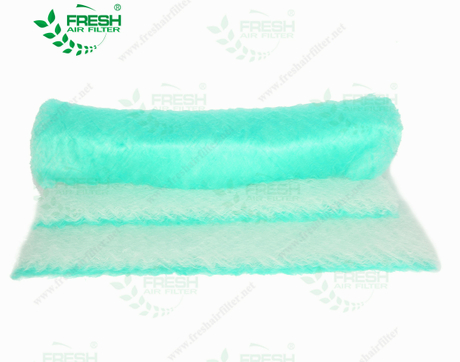

Product Display:
