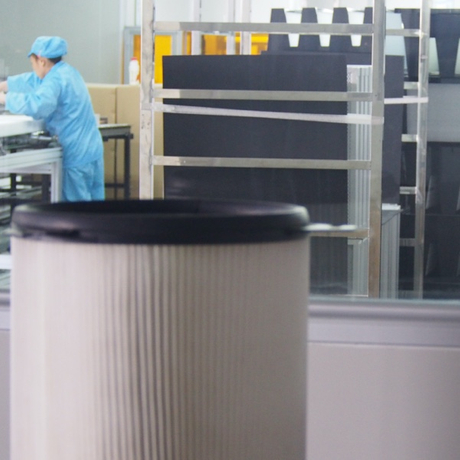

Dust Filter Cartridge
Application:
Commercial/Industrial facility dust/exhaust gas capture and filtration.
1. Ambient temp dust collection and gas filtration.
2. High temp dust collection and gas filtration.
3. Corrosive dust collection and gas filtration.
4. This filter shall work with dust filtration equipment to be applied in powder/coating, shot-blasting, dust removal, and hardware coating spray booth, and in general the applications are on dust removal, ultrafine particles recycling as well as air purification.
Material and Features:
* Material: Ultra strength polyurethane fiber non-woven fabric cloth, the Tubular fiber are reciprocal chiasma to form more compact and well distributed openings, which ensures better filtration performance.
* Integrate with robust, durable PU material and corrosive proof steel structure, the outer structure can be fitted with glue line to offer more mechanical strength.
* Opening and wrinkle re-designed to increase effective filtration area, airflow stabilized and barrier free.
* Compared to conventional filter bags, the filtration area doubled and even tripled, less resistance and longer life span.
* Temp resistance range: ≤130℃~≤300℃
Technical Contrast of General Type
Model | Outer Diameter (mm) | Height (mm) | Inner Diameter (mm) | Total Height （mm) | Bottom Cap Hole Inner Diameter | Filtration Area |
FRS-LT3260 | 325 | 600 | 215 | 610 | 16 | 6.5 |
FRS-LT3266 | 325 | 660 | 670 | 7 | ||
FRS-LT3290 | 325 | 900 | 910 | 9 | ||
Remarks: other specification to be customized, quick removal no-hole bottom cap. | ||||||
