Honeycomb Activated Carbon Air Filter
Application:
Purification of fresh air and exhaust gas for commercial & industrial ventilation and air-conditioning system.
1. Air-supply purification for fresh air system.
2. Second-level or third-level purification for household and commercial air purifiers.
3. Exhaust emission first-level or second-level filtering.
Technical Parameters
* Filtering objects: Low concentration of organics such as odors, formaldehyde, benzene and ammonia.
* Adsorption rate：≥30%
* Moisture resistance (relative humidity)：≤80%RH
* Temperature resistance：≤100℃
* Instantaneous temperature resistance：≤120℃
Technical Specification
Type | Dimension | Standard filling ratio | Best adsorption air velocity (m/s) | Initial pressure drop (Pa) | ||
H(mm) | W(mm) | D(mm) | ||||
FRS-KHXT | 100~1000 | I00~1000 | 10~100 | ≥80% | ≤0.5 | ≤50 |
Remark： Other sizes are available on request | ||||||

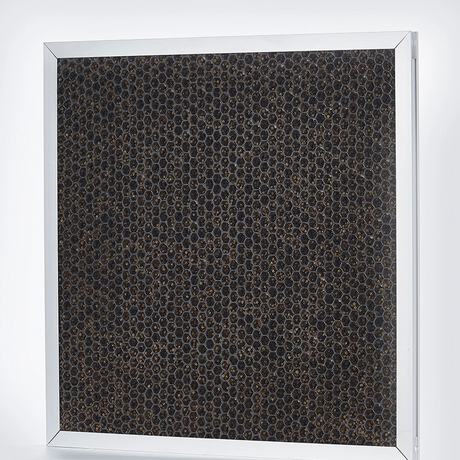

Product Real Shot
