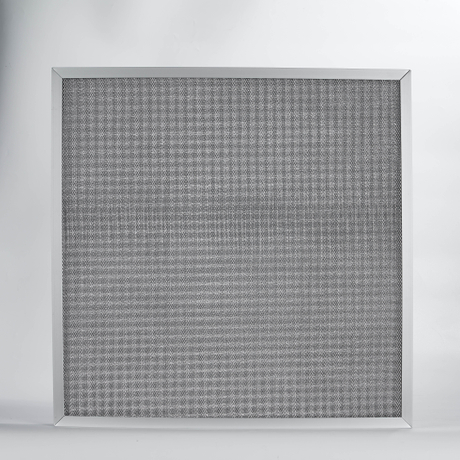

Metal Mesh Pre-filter
Application : pre-filter and foreign material filtration ,commercial and industrial ventilation systems
Used for clean room conditioning system, pre-filtration through fresh air venting units, and exterior air conditioning connection
1. Primary filtration of central air conditioning system
2. Pre-filtration at the intake of Air purification equipment
3. Primary filtration in a filtration system
4. Ventilation system for outdoor and other harsh environments
5. Pre-filtration in Ventilation system for outdoor fire-proof and high temp resistance working condition.
Technical parameters
Filter object: particles≥ 10μm
Wet tolerance (relative humidity):less than 100%RH
High temperature: less than or equal to 300 ℃
Instantaneous temperature resistance: less or equal to 350 ℃
Specification :
Model | Outline dimension | Rates air velocity (m/s) | Rated air flow (m3/h) | Initial pressure drop (Pa) | ||
H(mm) | W(mm) | T(mm) | ||||
FRS-BSJS-A1-G2-E0-15 | 595 | 595 | 15 | 2 | 2500 | ≤50 |
FRS-BSJS-A1-G2-E0-21 | 595 | 595 | 21 | |||
FRS-BSJS-A1-G2-E0-25 | 595 | 595 | 25 | |||
FRS-BSJS-A1-G2-E0-46 | 595 | 595 | 46 | |||
Remarks: Other specifications can be customized according to requirement | ||||||
