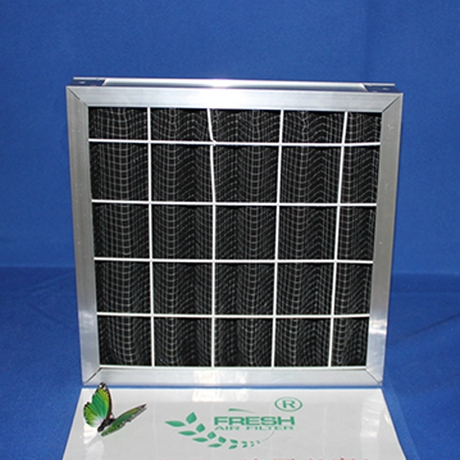

Odor Removal Activated Carbon Pleated Pre Air Filter
Purification of fresh air and exhaust gas for commercial & industrial ventilation air-conditioning system.
Technical Parameters
1. Filtering objects: Low concentrations of odors, formaldehyde, benzene, ammonia and other organics.
2. Adsorption rate：≥25%~35%
3. Moisture resistance (relative humidity)：≤80%RH
4. Temperature resistance：≤100℃
5. Instantaneous temperature resistance：≤120℃
Technical Specification
Type | Dimension | Number of folds | Best adsorption air velocity (m/s) | Initial pressure drop Pa | ||
H(mm) | W(mm) | T(mm) | ||||
FRS-ACZD-A1-G4-E0-25 | 595 | 595 | 25 | 16 | ≤0.5 | ≤50 |
290 | 595 | 8 | ||||
FRS-ACZD-A1-G4-E0-46 | 595 | 595 | 46 | 16 | ||
290 | 595 | 8 | ||||
FRS-ACZD-A1-G4-E0-96 | 595 | 595 | 96 | 10 | ||
290 | 595 | 5 | ||||
Remarks: other specifications are available on request. | ||||||
