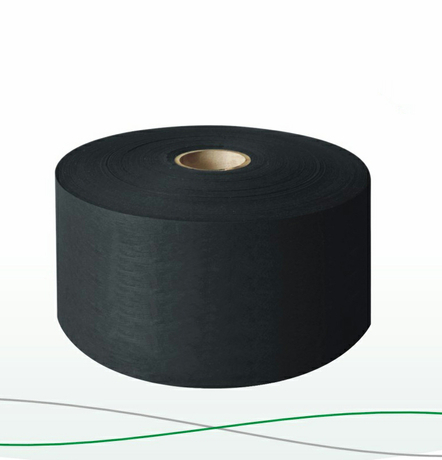

Activated Carbon Non-woven Fabric
Application:
Applied in air filters mesh, masks, shoe materials, storage boxes and etc.
1. Air conditioning and ventilation systems dust removal and deodorization.
2. Formaldehyde, toluene and hazardous gas adsorption.
3. Home use & commercial use, coating industry exhaust gas emissions purification.
4. Can be customized in pad / in slice, in frame or in rolls.
Material & Parameters:
1. Activated carbon media is made of quality coconut shell carbon powder material and adhere to non-woven fabric cloth.
2. Good adsorption and dust capture performance, can be trimmed to suit any dimension, good strength and low airflow velocity resistance.
3. Resistance to general chemical liquid even weak acid/alkaline, avoid direct and long term sun radiation.
Technical parameters :
* Adsorption objects: ≥ all kinds of organic gases
* Flame retardant rating: B1（GB/T 17591-2006）
* Final pressure drop: 200pa (recommended)
* Humidity resistance: ≤100%RH
* Resistance to temperature: ≤80℃
* Instantaneous temperature resistance≤120℃
Technical Data:
Model | Dimension | Carbon content % | Benzene adsorption % | Weight Range g/㎡ | ||
L (m) | W (m) | T (mm) | ||||
FRS-ACWB | 1000 | 1/1.6 | 0.2~1 | ≥40% | ≥25% | 30~200 |
Remarks: other specification to be customized | ||||||

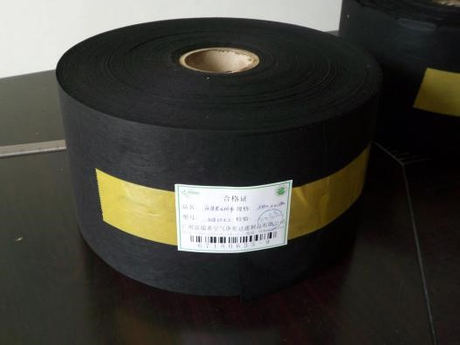

Product Real Shot :
